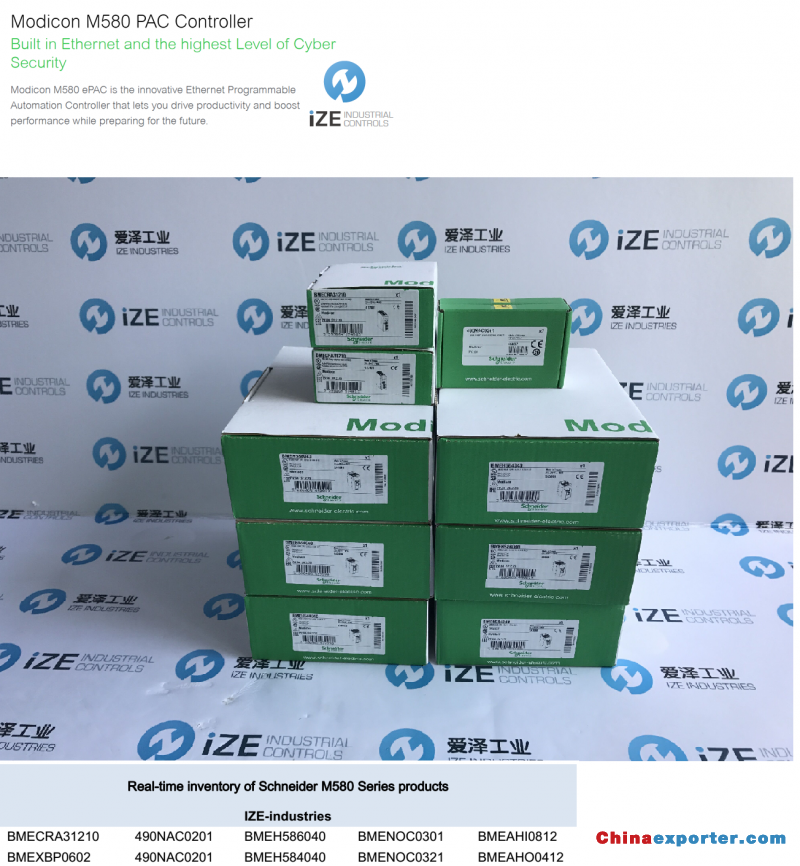

The new high-end Modicon M580 Ethernet Programmable Automation Controller (ePAC) features Redundant Processors, native Ethernet, and cyber-security embedded in its core and brings:
▪ Native Ethernet capabilities
▪ High performance High availability for processors & networks
▪ Enhanced cyber-security More flexibility in design and greater agility for your operations
▪ Smooth modernization solutions
Prepare your plant for the future:
With a built-in Ethernet backbone, the M580 architecture interconnects all your devices and provides continuous communication flow to reap IIoT benefits.
High level of computing power for increasingly data-intensive processes.
Boost your productivity:
▪ End-to-end 100 Mbps speed, from top to bottom
▪ Application response time up by 10 times*
▪ 64 MB memory — data capacity of up by 8 times* (*compared with legacy ranges)
Reduce downtime:
▪ Availability rate up to 99.9996%
▪ Redundant CPUs
▪ Intelligent redundant power supply designed to dramatically extend life span (in Q2 2016)
Protect your know-how:
▪ IPsec communications protocol
▪ Cyber-security certified (Achilles Level 2)
▪ Encrypted password access
▪ Strict supervision of firmware and software integrity
▪ Easy to configure Cybersecurity features via the Unity Pro platform
Evolve and scale your architectures without stopping the process:
▪ Add new RIO drops or new modules in the architecture
▪ Hotswap your modules — with automatic reconfiguration
▪ Modify channel configuration parameters, application or change variables
Invest in the long term:
▪ Capitalize on Modicon's robust hardware platform and Unity Pro engineering software efficiency
▪ Migrate or modernize your installed base with a smooth transition to newer technology
Features

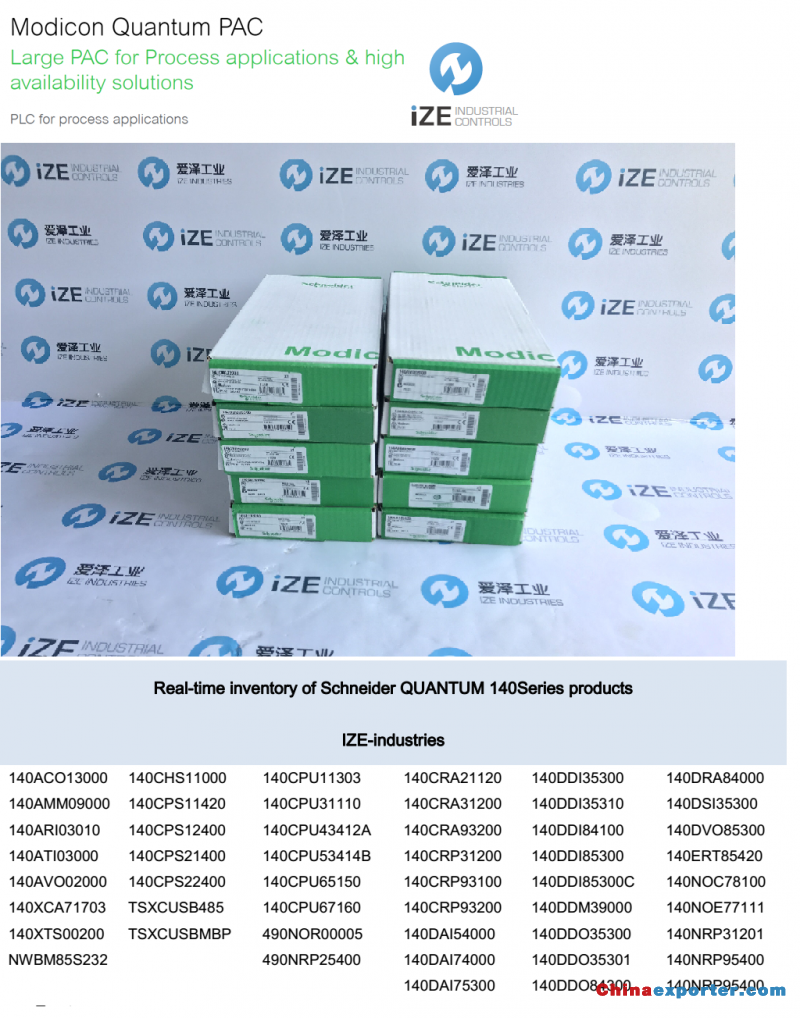

▪ The Modicon™ Quantum™ PACs provide well-balanced CPUs able to provide leading performance from boolean to floating-point instruction...
5 IEC languages as standard: LD, ST, FBD, SFC, IL, the Modicon LL984 language to facilitate installed base migration.
▪ High-level multitasking system
▪ Memory capacity up to 7 Mb using PCMCIA extensions
▪ Specially shaped for process control applications with conformal coated modules, and an extensive catalogue of partner modules
▪ Safety processors and I/O modules to manage safety integrated systems
▪ Plug & Play high-performance Hot-Standby solutions with LCD keypad for local monitoring
▪ Numerous built-in ports (USB port, Ethernet TCP/IP port with Web server, Modbus Plus and at least one Modbus serial port) on the front panel
▪ In-rack connectivity to Profibus-DP, embedded Ethernet router
▪ Increase the availability of your architecture with the CRA and CRP Quantum Ethernet I/O modules (QEIO)
▪ Thanks to the Modicon X80 drops, expand your architecture and integrate easily your distributed devices in the same network (such as HMI, variable speed drives, I/O islands...)
Benefits
▪ Choose performance
▪ Offering a large range of processors, Modicon Quantum is ideal for complex processes. The power of its processors results in optimum cycle times, while integrating ever more communication functions, diagnostics, memory flexibility and data storage. The Quantum Safety system is now available, certified TUV Rheinland, simple to use and ready to be integrated in your automated system.
▪ More flexibility
▪ Chose the best topology, daisy chain loop, ring, star, bus… for the design of your Ethernet architecture.
▪ Higher availability
▪ Hot-standby CPUs and daisy chain loop topology improve the availability of your process. In case of cable fails, the recovery time is less than 50 ms for an entire Quantum Ethernet I/O architecture.
Applications
▪ Process control
▪ Safety
▪ Infrastructure
Features

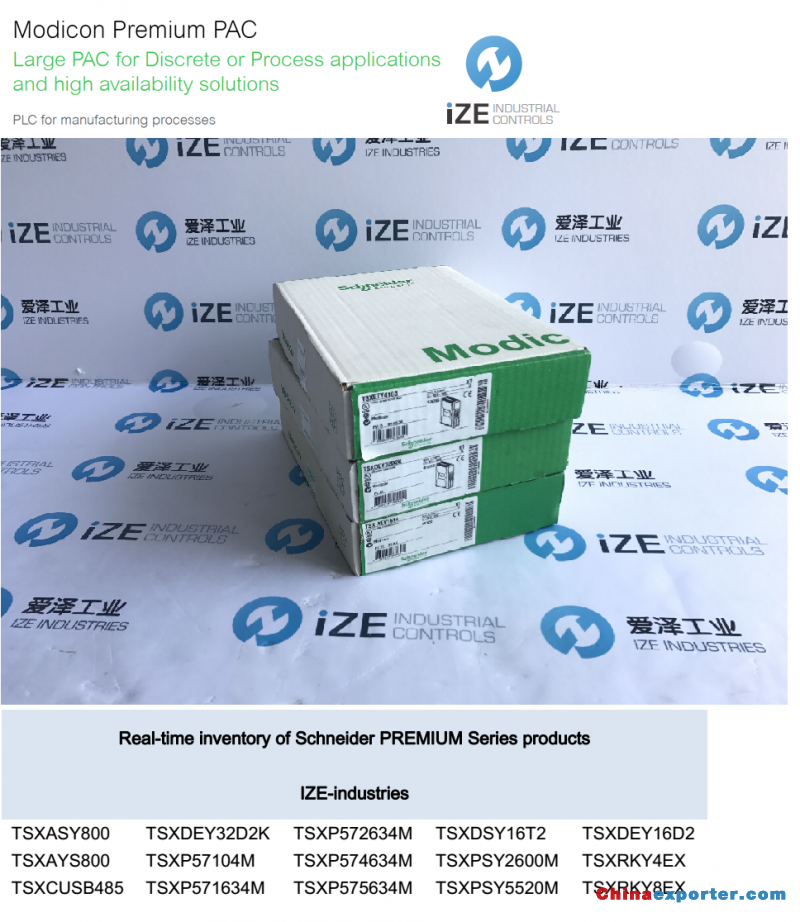

▪ With the new Premium processors in the Unity range, there is no need to worry about restrictions…
▪ Five IEC languages as standard: LD, ST, FBD, SFC, IL. High performance CPUs with 37 ns per instruction and up to 7 Mb of programme
▪ High-level multitasking system
▪ A compact system (very high density modules) particularly at ease in extended architectures (distribution of 16 racks in real time without repeater)
▪ An extensive catalogue of application-specific modules (safety, reflex processing, counter, position control, motion, weighing, data storage)
▪ New High End processors
▪ All Ethernet TCP/IP Transparent Ready services: IO scanning, Global Data, Web server, e-mail messaging, direct access to databases, TCP Open, Network Time Protocol, etc.
▪ Numerous built-in ports: USB port, Ethernet TCP/IP port with Web server, CANopen or FIP master port, Modbus serial port
▪ The widest connectivity offer on the market:AS-Interface, Modbus Plus, INTERBUS or PROFIBUS DP
